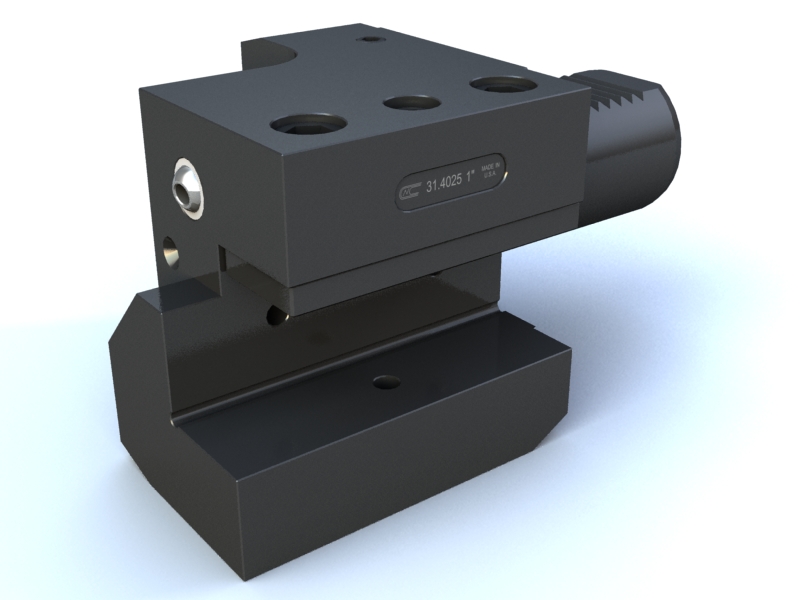

VDI 1" C1 RH 40mm SH CNC Lathe Toolholder 31.4025

VDI 1" C1 RH 40mm SH CNC Lathe Toolholder 31.4025

Item# 314025
$329.00
Availability: In Stock
VDI 1" C1 RH 40mm SH CNC Lathe Toolholder 31.4025

Product Description

VDI 1" C1 RH 40mm SH CNC Lathe Toolholder 31.4025

USA MADE

Specifications

Shank Diameter (mm) 40.00

Maximum Cutting Tool Size (Inch) 1

Projection (mm) 85.00

VDI Form Type C1 Through Coolant (Yes/No) Yes

Head Width (mm) 85.00



Features

For Mazak, Emco-Maier, Hitachi, Seiki, Okuma, Hass, Daewoo Hardinge.

Toolholders are precision ground, and Hardened.

Black-oxide finish for long lasting protection.

Material 8620 To DIN 69 880 specifications.

Ajax has a complete line of CNC VDI Toolholders, Tool Blocks and Live Tooling, Made to DIN 69880 standards and ISO 9001/2000 specifications.

Available VDI Shank Sizes: 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm & 80mm.

Holds Standard Inch Size Tooling; Metric Available Upon Request.

VDI Provides a fast and accurate way of affixing tools to the Turret; Tool Changes are performed in seconds.

Toolholders can be Preset. By Cam Operated Clamping System.

Toolholders can be manufactured to meet your specifications.

PRICE IS LIST WE WELCOME THE OPPORTUNITY TO QUOTE



Additional Sizes

VDI Shank Size Part Number

20MM 31. 2016

25MM 31. 2516

30MM 31. 3020

40MM 31. 4025

50MM 31. 5032

60MM 31. 6032
