Product Description
Technical Specifications Spindle Nose A2-5
Net Weight (lbs) 33.8
Max. Speed (rpm) 6000
Max. Gripping Force (lbs) 14167
Through Hole Diameter 1.811
Jaw Stroke (Dia.) .216
Plunger Stroke .512
Gripping Range Min. .512
Gripping Range Max. 6.654
Chuck Diameter 6
Chuck Height 3.543
Number of Jaws 3
Model Number 37810650

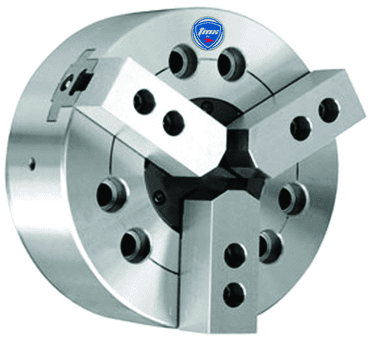

Description 3-Jaw Power Chuck Direct Mount
Brand Name TMX
Mount A2-5
Supplied with spindle mounting plate, Semi-finished draw nut, draw nut wrench, set of soft top jaws, set of t-nuts, wrenches for chuck installation and operation.
Low cost direct replacement for major OE brands
High performance and great value
Use existing top jaws 1.5mm x 60 serrations
Hardened and ground critical surfaces for long life and high accuracy
Large thru hole
1 Year Warranty
