Product Description
Technical Specifications Spindle Nose A2-6
Net Weight (lbs) 200
Max. Speed (rpm) 4800
Max. Gripping Force (lbs) 17990
Jaw Stroke (Dia.) .346
Plunger Stroke .827
Gripping Range Min. .906
Gripping Range Max. 8.268
Chuck Diameter 8
Chuck Height 3.810
Number of Jaws 3
Model Number 37610806

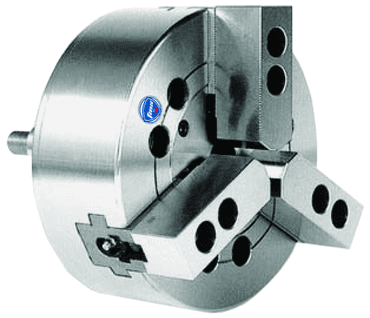

Description 3-Jaw Closed Center Power Chuck, Direct Mount Brand Name TMX
Supplied with spindle mounting plate, set of soft top jaws, set of t-nuts, wrenches for chuck installation and operation.
Low cost direct replacement for major OE brands
High performance and great value
Use existing top jaws 1.5mm x 60 serrations
Hardened and ground critical surfaces for long life and high accuracy
1 Year Warranty
