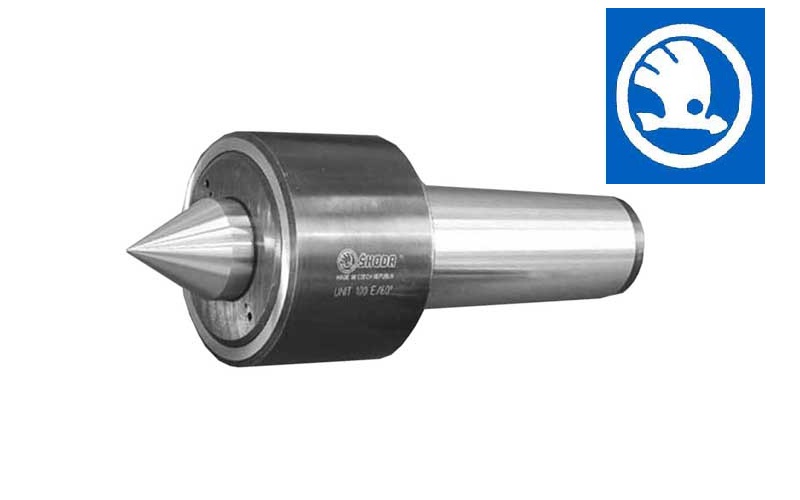

Product Description
For clamping of heavy workpieces at lathes.
• The rigid structure and seating of the turning part is characterized by long service life
• The model EXTRA is commonly used for work at grinding machines
• Centres with the apex angle of 60° for reduction of deformations of the machine (tailstock, bed, headstock) from axial clamping forces
• The live centers are provided with shanks according to DIN 228 and ISO 296 (without clamping thread)

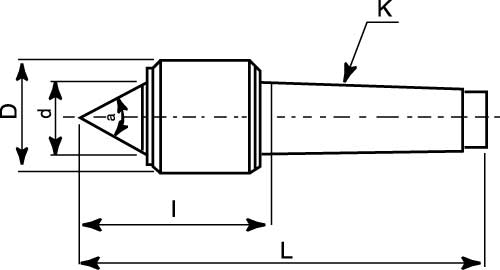

Model CSN 243325
K = MT4
A = 60°
d = 1.58"
D = 3.14"
I = 4.10"
L = 7.85"
Load 3300lb
