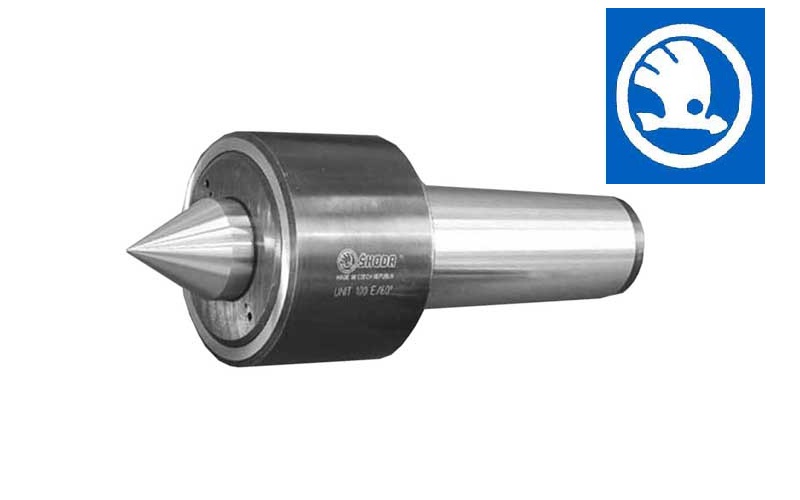

Product Description
For clamping of heavy workpieces at lathes.
• The rigid structure and seating of the turning part is characterized by long service life
• The model EXTRA is commonly used for work at grinding machines
• Centres with the apex angle of 60° for reduction of deformations of the machine (tailstock, bed, headstock) from axial clamping forces
• The live centers are provided with shanks according to DIN 228 and ISO 296 (without clamping thread)

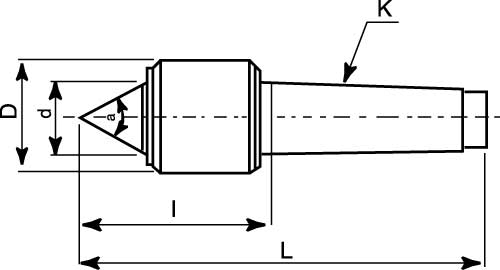

CSN 243325 K = MT6
a = 60°
d = 2.16"
D = 4.92"
I = 6.42"
L = 13.38"
Load Capacity 11000lb
• The rigid structure and seating of the turning part is characterized by long service life
• The model EXTRA is commonly used for work at grinding machines
• Centres with the apex angle of 60° for reduction of deformations of the machine (tailstock, bed, headstock) from axial clamping forces
• The live centers are provided with shanks according to DIN 228 and ISO 296 (without clamping thread)
CSN 243325 K = MT6
a = 60°
d = 2.16"
D = 4.92"
I = 6.42"
L = 13.38"
Load Capacity 11000lb
