Product Description

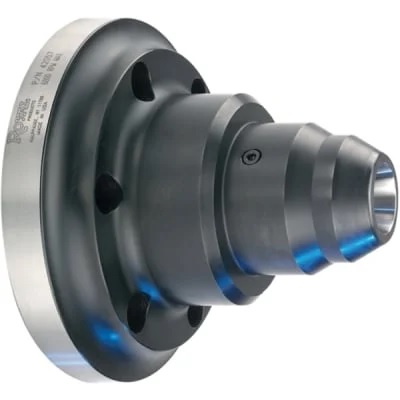

Traditional pullback design – collet is drawn into chuck for closing, pushed out for opening.
Low-profile nose offers outstanding tool clearance.
Includes free custom machined connector to fit your exact lathe drawtube specifications.
In-stock for same-day shipping.
Collet Chuck Weight (lbs) 12
Spindle Type A2-5
Collet Type 5C
Low-Profile Capacity 1 1⁄16″
(A) Overall Length 5.00
(B) Nose Diameter 2.63
(C) Nose Length 1.05
(D) Body Diameter 3.14
(E) Flange Diameter 6.45
Max Drawbar Force (lbs) 4,490
Max Clamping Force (lbs) 15,750
Max RPM 6,000
