R8 VDI Live Driven Tooling Radial Sauter 5480 Right D/M Backward Head 40mm RH ER32

R8 VDI Live Driven Tooling Radial Sauter 5480 Right D/M Backward Head 40mm RH ER32 BR4054803290 R840AR1



AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING, Lathe Chucks and Jaws. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for YOU!!!

Ajaxtoolsupply.com GUARANTEED LOWEST PRICE!

Ajax Industries Sales and Service 1 (800) 543-5998

Description

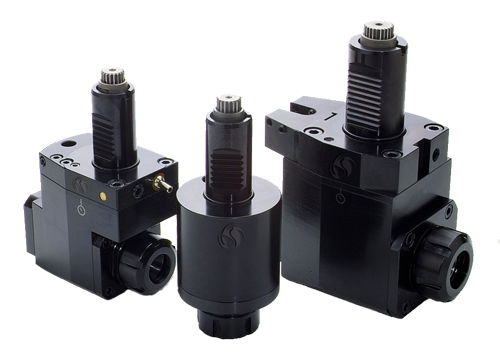

R8 Radial 5480 Right D/M Backward Head (D=40, ER32)

R8 Radial Drilling & Milling Backward Head

Coupling to DIN5480 (Sauter Type)

Model# with "K": Internal Coolant (IC), "/2": Double

Torque (DT), "*2" Double Speed (DS) Main Features

For Milling, Drilling Reaming.

To be used for Collet DIN 6499

For clockwise and counter-clockwise rotation.

External Coolant supply



Spevifications

Part Number :BR4054803290

D DIN69880 40

X Capacity 2-20/ER32

S 50

Max rpm 5000

i 1:1

A 124

B 80

C 44

E 110

F 42

G 34

M 90

P DIN5480 W20X0.8

Old# Right-Hand R840AR1

Old# Left-Hand R840AL1
