R18 VDI Live Tooling Radial MT Right D/M Backward Head 50mm ER40 BR50MT4090

R18 VDI Live Tooling Radial MT Right D/M Backward Head 50mm ER40 BR50MT4090

Item# BR50MT4090
$3,249.00
Availability: In Stock
R18 VDI Live Tooling Radial MT Right D/M Backward Head 50mm ER40 BR50MT4090

Product Description



AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING, Lathe Chucks and Jaws. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for YOU!!!

Ajaxtoolsupply.com GUARANTEED LOWEST PRICE!





Ajax Industries Sales and Service 1 (800) 543-5998











Description

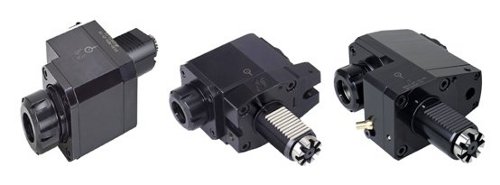

R18 Radial MT Right D/M Backward Head (D=50, ER40)

R18 Radial Drilling & Milling Backward Head

Spur Coupling-MT (Brauffaldi Type)

Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT)



Main Features

For Milling, Drilling Reaming.

To be used for Collet DIN 6499

For clockwise and counter-clockwise rotation.

External Coolant supply



Specifications

Part Number :BR50MT4090

D DIN69880 50

X Capacity 3-26/ ER40

S 63

Max rpm 5000

i 1:1

A 129

B 86

C 49

E 112

F 45

G 39

M 90

Old# Right-Hand R1150MR1

Old# Left-Hand R1150ML1
