Product Description

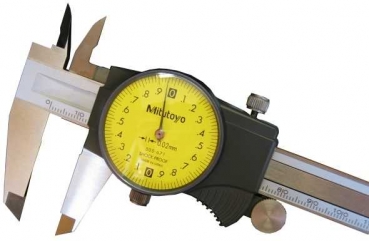

Mitutoyo 0 - 150mm 505-671 Measuring Range (.02mm Grad.) - Dial Caliper
Dial Calipers - Series 505
Series 505
Features
New designed dial movement for ultra smooth sliding and high shock protection.
Titanium Nitride (TiN) coating is applied to the sliding surface to increase wear resistance(except for 0-300mm and 0-12" model).
Can measure OD, ID, depth, and steps. Lock screw for dial bezel and for holding the slding jaw position.
Technical Specifications
Jaw Depth 40mm
Range Per Revolution 2mm
Graduation 0.02mm
Model Number 505-671
Measuring Range 0 - 150mm
Yellow Face Dial Caliper
Extra-rigid (3.4mm thick) main beam
Extra-large dial face
Hardened stainless steel
4-Way measurements
Easy zero point re-adjustment with adjuster supplied

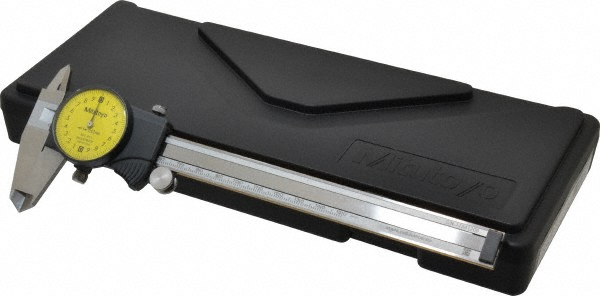

Supplied with fitted carrying case
Improved durability, the sliding surface of the main blade is coated with TiN 4", 6", & 8" model
