Product Description
Description:

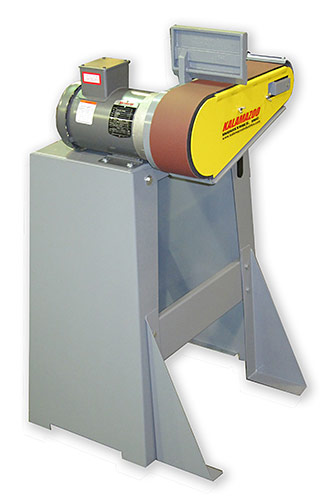

The Kalamazoo Industries model BG448 is a 4" x 48" belt grinder that can be positioned at any point from vertical to horizontal. The high 7200 SPFM belt speed enables quick metal removal with minimal heat. Originally designed to meet a customer’s request for custom features, the BG448 is now included in our product line
The BG448 grinder features a 4" W x 10" H work space that allows full work movement from left to right, and a removable platen and work table that converts from slack belt grinding to platen grinding. The unit has spring loaded belt tension, quick belt change, an 8" x 4" serrated 70 duro contact wheel, and a 3HP direct drive motor available in either 110V 1PH or 220V 3PH. The grinder is also available without stand or with a dust collector base.
Specifications:
-Multi-position belt grinder from vertical to horizontal.
-4" x 48" belt grinder
-3HP 1PH TEFC motor, 110 or 220V (specify at time of order)
-7200 SFPM
-Over all dimensions: L 14" x W 18" x H 26"
-Platen work surface: W 4" x H 10"
-Contact wheel work surface: 8" x 4". 70 duro serrated contact wheel
-Full work movement from left to right
-Removable platen and work table
-Weight: 228 LBS (with stand)
-Stand Option: $185
-Made in the USA
