Product Description

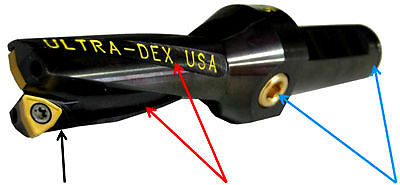

Steel 2xD Indexable Drill with a 1.312″ Diameter 2.771″ Drill Depth 1.250″ Shank Length to hold (2) WCMX 32.52 Coolant Thru
Product Specs
BD (Body Diameter) 1.73
DC (Cut Diameter) 1.312
DCONms (Connection Diameter) 1.25
L (Overall Length) 6.505
LF (Functional Length) 2.771
LPR (Protruding Length) 3.866
LS (Length of Shank) 2.619
LU (Usable Length) 2.624
Product Specs
BD (Body Diameter) 1.73
DC (Cut Diameter) 1.312
DCONms (Connection Diameter) 1.25
L (Overall Length) 6.505
LF (Functional Length) 2.771
LPR (Protruding Length) 3.866
LS (Length of Shank) 2.619
LU (Usable Length) 2.624
