Product Description

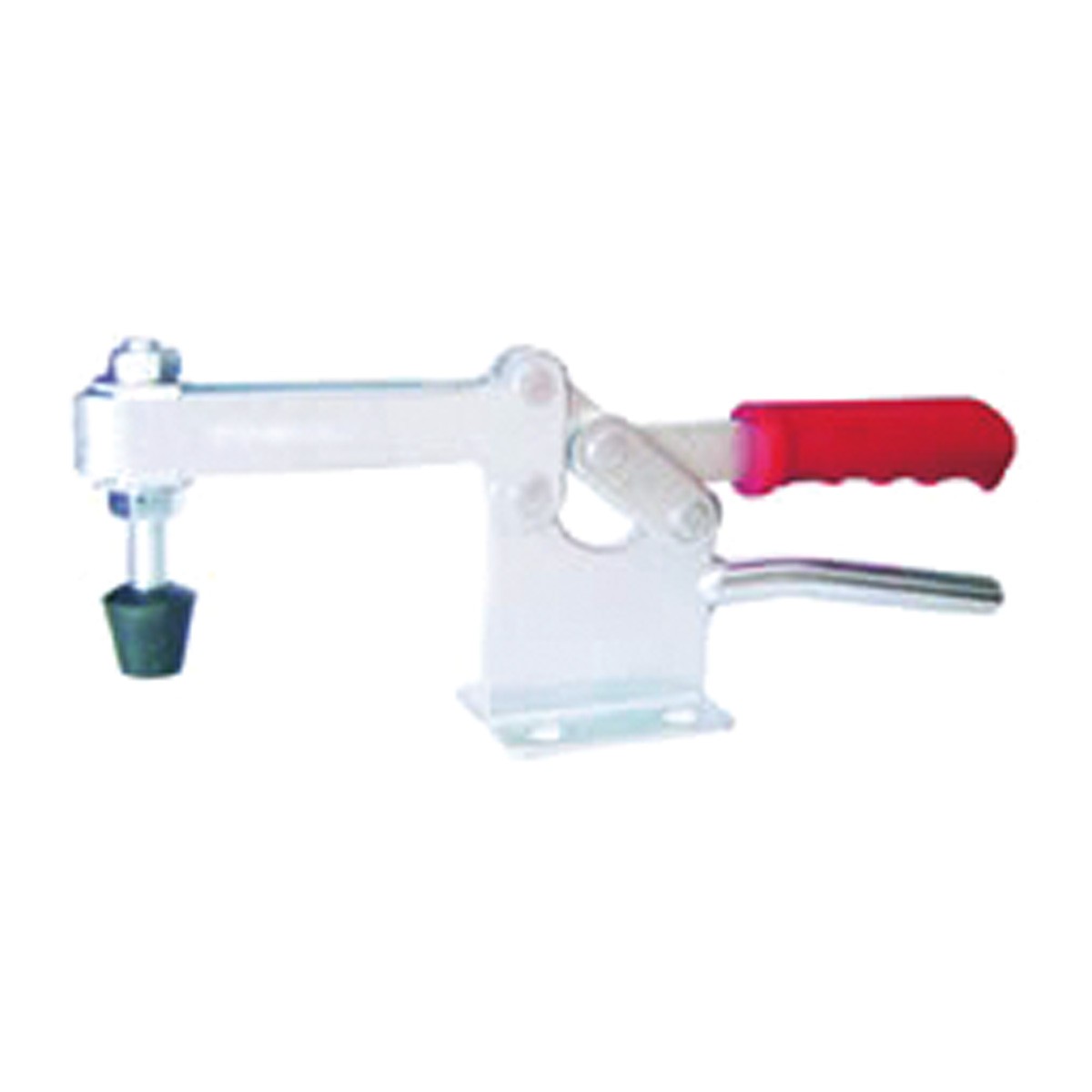

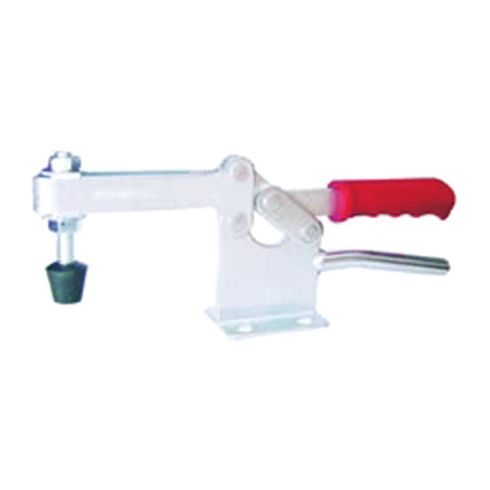

HORIZONTAL TOGGLE CLAMP U-BAR FLANGED BASE 880 LBS CAPACITY 3900-0375
*CLICK ON THUMBNAIL TO UP-SIZE SCHEMATIC
FEATURES
Ajax 220WH
All parts die stamped from solid steel
Red Hand Grip for safety & convenience
Double plated to avoid rust
Carbon steel rivet for durability
Holding Capacity: 400Kg
880 LBS CAPACITY
Hand Moves: 80°
Bar Moves: 90°
Bar U-Bar

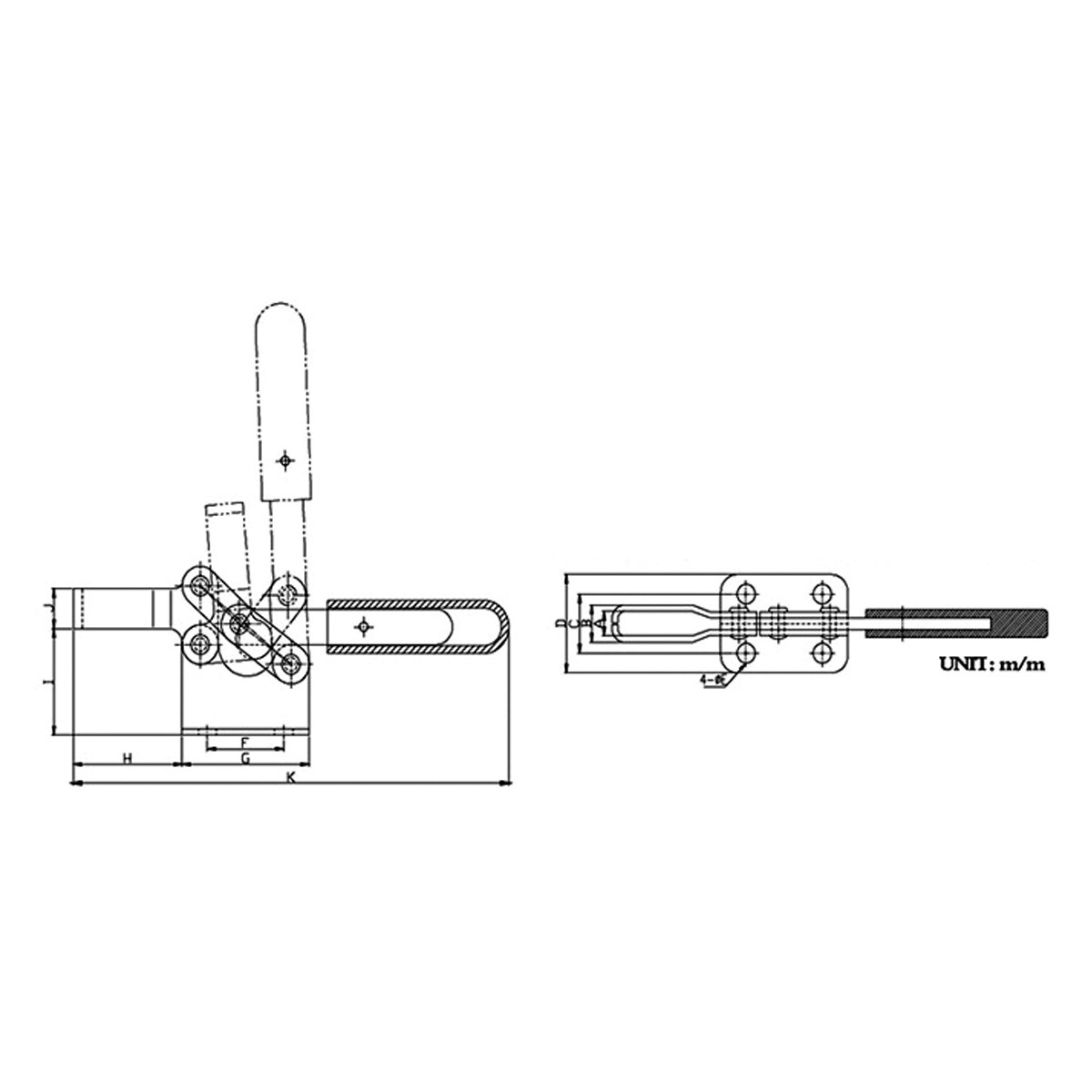

SPECIFICATIONS
A 14
B 20.5
C 30
D 51
E 10
F 42
G 70
H 60
I 79
J 20.5
K 230
L 3.2
*CLICK ON THUMBNAIL TO UP-SIZE SCHEMATIC
FEATURES
Ajax 220WH
All parts die stamped from solid steel
Red Hand Grip for safety & convenience
Double plated to avoid rust
Carbon steel rivet for durability
Holding Capacity: 400Kg
880 LBS CAPACITY
Hand Moves: 80°
Bar Moves: 90°
Bar U-Bar
SPECIFICATIONS
A 14
B 20.5
C 30
D 51
E 10
F 42
G 70
H 60
I 79
J 20.5
K 230
L 3.2
