Product Description

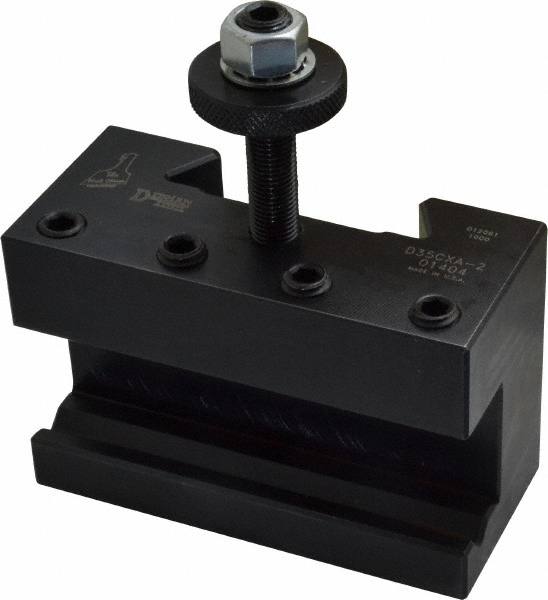

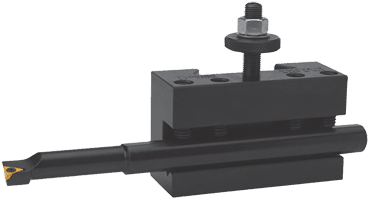

Dorian No. D2 CXA Turning, Facing & Boring Toolholder
USA MADE
The “V” groove makes this holder more versatile so that it can hold either square shank toolholders or boring bars. Holds the tool close to the tool post to maximize rigidity when turning, facing, threading or boring. Fits industry standard toolposts.
Lathe Swing 14 to 17"
SDN Description D35CXA-2
Part No.73310101404
Size Decimal Inch:
A Bottom of Holder to Tool 0.500
T Tool Holder Capacity 1.000
C Length 3.750
D Width 1.750
E Height 2.500
F Back of Holder to Center of Post 1.199
G Back of Bar to Back of Holder 1.040
G1 Center of Bar to Back of Holder 1.390
USA MADE
The “V” groove makes this holder more versatile so that it can hold either square shank toolholders or boring bars. Holds the tool close to the tool post to maximize rigidity when turning, facing, threading or boring. Fits industry standard toolposts.
Lathe Swing 14 to 17"
SDN Description D35CXA-2
Part No.73310101404
Size Decimal Inch:
A Bottom of Holder to Tool 0.500
T Tool Holder Capacity 1.000
C Length 3.750
D Width 1.750
E Height 2.500
F Back of Holder to Center of Post 1.199
G Back of Bar to Back of Holder 1.040
G1 Center of Bar to Back of Holder 1.390
