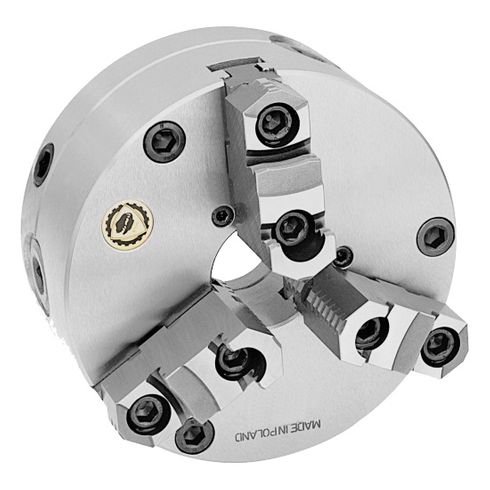

6" BISON 3 Jaw SET-TRU Chuck Forged Steel 7-866-0600

6" BISON  3 Jaw  SET-TRU Chuck Forged Steel  7-866-0600
Item# 7-866-0600
Regular price: $1,032.10
Sale price: $739.94
Availability: In Stock

Product Description



6" BISON 3 Jaw (2 Piece) SET-TRU Chuck Forged Steel Body with Fine Adjustment 7-866-0600

Bison SET-TRU Chucks can give your lathe the accuracy of a tool room lathe. Once dialed in you can count on .0003" total indicator run out (radial) and .0001 total indicator run out (axial).

Set-Tru Scroll Chucks have 3 pinions, or 3 positions for the chuck wrench. Compare with other well-known chucks which only use a single pinion design. Bison's finest product.

This well respected brand of chucks has been the long accepted standard for high quality European work holding technology. At your request an Ajax Chuck & Jaw Technician can assest in selection of a Bison Chuck to fit your application. Ajax sales and service 1 (800) 543-5998

Hole Size 1.654

.0004" Accuracy

Scroll & jaws hardened and ground

Three hardened and ground pinions

4 Micro adjustment screws provide .0004 T.I.R. repeatability

Maximum Speed RPM 4600

Weight lb 21


E in 3.3858
H in 2.677
h in 1.71
C in 0.67
M Thread M10 x 1.5
M Qty 3
N Thread M18 x 1
N Qty 4


Clamping Range d1 (min-max) .118 - 2.52
Clamping Range d2 (min-max) 2.44 - 4.76
Clamping Range d3 (min-max) 4.53 - 6.30
Clamping Range d4 (min-max) 1.65 - 3.81
Clamping Range d5 (min-max) 3.46 - 5.75


Each chuck is provided with:

1 Set of hard master jaws
1 Set of hard top reversible jaws
1 Chuck wrench
1 Set of mounting bolts
1 Set of fine adjustment screws
2 Hex keys
Eye bolts for chuck sizes 15-3/4 and larger
