Product Description

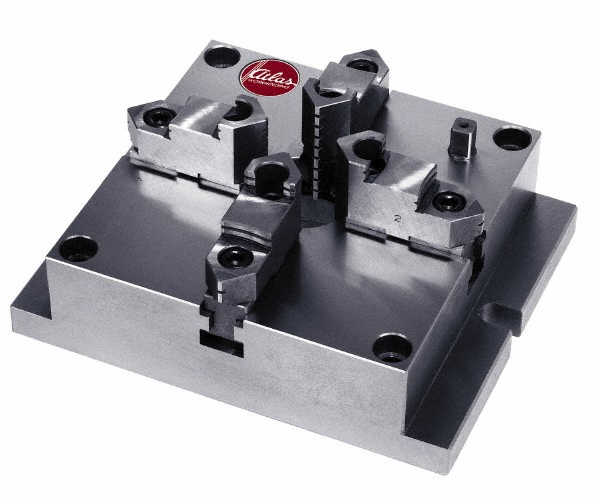

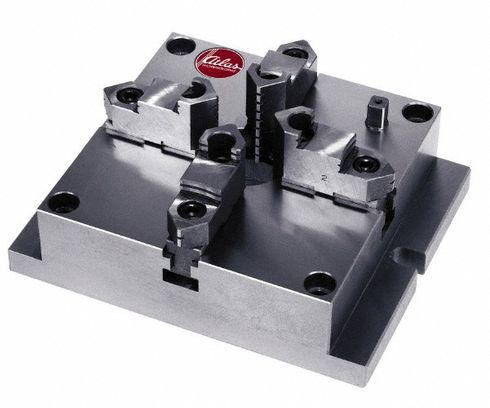

Super Thin Low Profile Square Chucks
Series MCA
Universal scroll chuck design
End-surface clamping design enables fast efficient mounting of several chucks to a worktable
Super thin design allows greater Z-axis machining
Elongated slots allows fast and easy positioning on worktable, simply use standard T-bolts, versus mounting connecting plates required by conventional chucks
Milled key-slots on the base plate allows accurate quick changing of the chucks
Ideal for pallet applications, Standard Mills, Vertical Machining Centers, Angle Plates, Tombstones, and Grinding Machines
American Standard, hard top and master jaws
One year warranty
Chuck Diameter (Inch) 8
Minimum External Chucking Diameter (Decimal Inch) 0.2000
Maximum External Chucking Diameter (Decimal Inch) 6.3800
Minimum Internal Chucking Diameter (Decimal Inch) 2.4400
Maximum Internal Chucking Diameter (Decimal Inch) 6.3400
Through Hole Size (Decimal Inch) 2.1700
Base Width/Diameter (Decimal Inch) 7.8700
Overall Height (Decimal Inch) 2.5600
Bolt Hole Spacing (Decimal Inch) 6.8500
Base Length (Decimal Inch) 9.8400
Series MCA
Universal scroll chuck design
End-surface clamping design enables fast efficient mounting of several chucks to a worktable
Super thin design allows greater Z-axis machining
Elongated slots allows fast and easy positioning on worktable, simply use standard T-bolts, versus mounting connecting plates required by conventional chucks
Milled key-slots on the base plate allows accurate quick changing of the chucks
Ideal for pallet applications, Standard Mills, Vertical Machining Centers, Angle Plates, Tombstones, and Grinding Machines
American Standard, hard top and master jaws
One year warranty
Chuck Diameter (Inch) 8
Minimum External Chucking Diameter (Decimal Inch) 0.2000
Maximum External Chucking Diameter (Decimal Inch) 6.3800
Minimum Internal Chucking Diameter (Decimal Inch) 2.4400
Maximum Internal Chucking Diameter (Decimal Inch) 6.3400
Through Hole Size (Decimal Inch) 2.1700
Base Width/Diameter (Decimal Inch) 7.8700
Overall Height (Decimal Inch) 2.5600
Bolt Hole Spacing (Decimal Inch) 6.8500
Base Length (Decimal Inch) 9.8400
