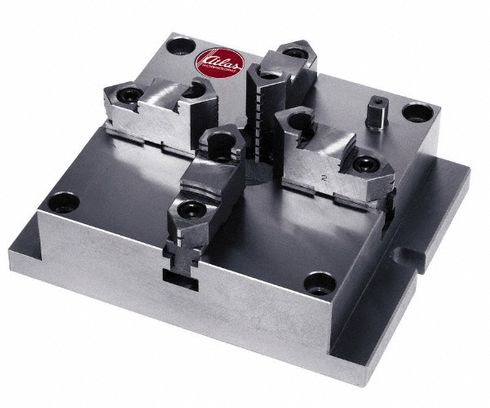

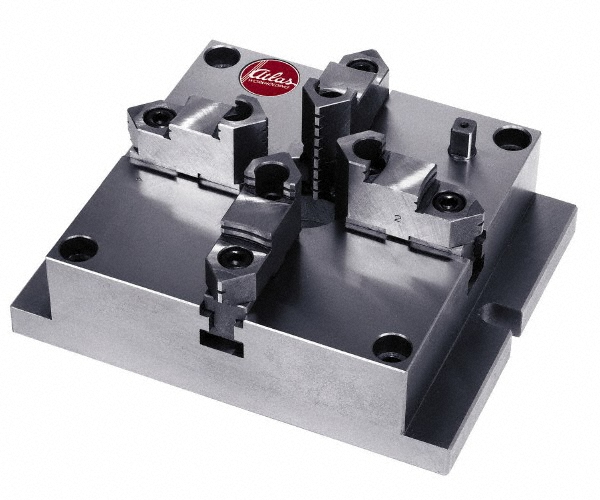

ATLAS Workholding 10" MCA Super Thin Low Profile Square MCA10

Super Thin Low Profile Square Chucks Series MCA



Universal scroll chuck design

End-surface clamping design enables fast efficient mounting of several chucks to a worktable

Super thin design allows greater Z-axis machining Elongated slots allows fast and easy positioning on worktable, simply use standard T-bolts, versus mounting connecting plates required by conventional chucks

Milled key-slots on the base plate allows accurate quick changing of the chucks

Ideal for pallet applications, Standard Mills, Vertical Machining Centers, Angle Plates, Tombstones, and Grinding Machines

American Standard, hard top and master jaws

One year warranty



Chuck Diameter (Inch) 10

Minimum External Chucking Diameter (Decimal Inch) 0.2400

Maximum External Chucking Diameter (Decimal Inch) 7.7800

Minimum Internal Chucking Diameter (Decimal Inch) 2.8300

Maximum Internal Chucking Diameter (Decimal Inch) 7.7800

Through Hole Size (Decimal Inch) 2.7600

Base Width/Diameter (Decimal Inch) 9.8400

Overall Height (Decimal Inch) 2.8300

Bolt Hole Spacing (Decimal Inch) 8.5800

Base Length (Decimal Inch) 12.2000
