Product Description

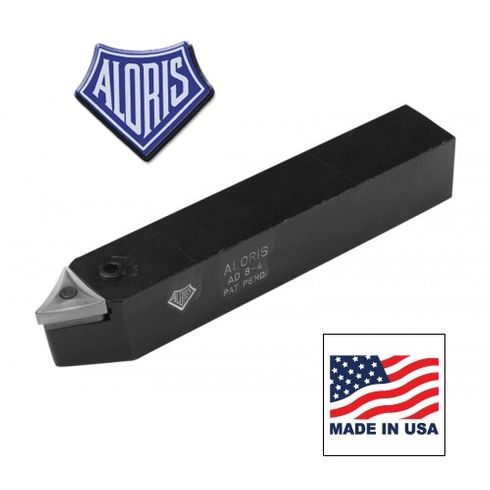

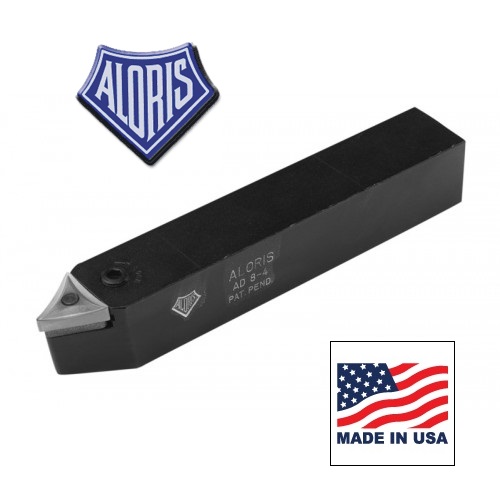

A unique locking device exerts a two-way force on the carbide insert: downward and tight against shoulder to assure rigid, positive seating. Designed to accept standard inserts. 30° side cutting edge style. Also available in right and left hand versions.

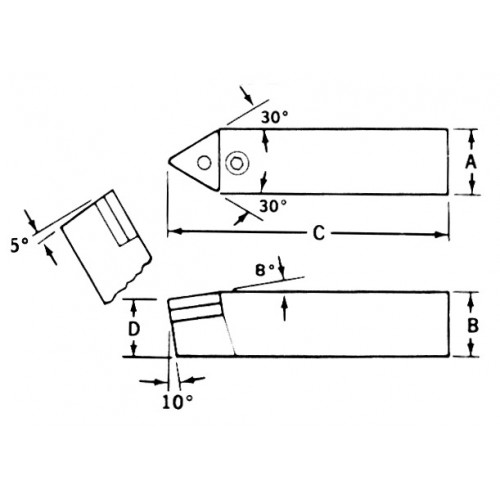

Dimensions (see image) A: 3/4"; B: 3/4"; C: 41/2"; D: 11/16"
Insert Size: I.C.: 3/8"; thickness: 1/8"
Replacement Parts: Carbide Seat ST-1 Hex Lock Pin LP-1 Lock Screw LS-1
Dimensions (see image) A: 3/4"; B: 3/4"; C: 41/2"; D: 11/16"
Insert Size: I.C.: 3/8"; thickness: 1/8"
Replacement Parts: Carbide Seat ST-1 Hex Lock Pin LP-1 Lock Screw LS-1
