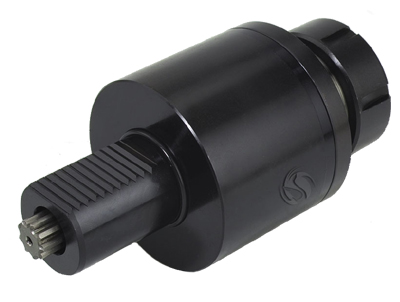

A2 VDI Live Driven Tooling Axial Sauter 5482 D/M Head w/ Collet Chuck 30mm ER25 DA30548225 A230B1

A2 VDI Live Driven Tooling Axial Sauter 5482 D/M Head w/ Collet Chuck 30mm ER25 DA30548225 A230B1







AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING, Lathe Chucks and Jaws. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for YOU!!!

Ajaxtoolsupply.com GUARANTEED LOWEST PRICE!

Ajax Industries Sales and Service 1 (800) 543-5998

Description

A2 Axial 5482 D/M Head w/ Collet Chk (D=30, ER25)

A2 Axial Drilling & Milling Head w/ Collet Chuck

Coupling to DIN5482 (Sauter Type)

Model# with "K": Internal Coolant (IC)



Main Features

To be used for collet DIN6499

External coolant supply



Specifications

For endmilling, drilling, reaming

For clockwise and counter-clockwise rotation

Part Number :DA30548225

Ref# DA30-5482

D DIN69880 30

X Capacity 1-16/ER25

S 42

Max rpm 6000

i 1:1

A 101

B 70

C 33

E 66

F 66

P DIN5482 B15X12

Old# A230B1
