A1 DA20548020 Axial VDI Live Tooling DIN 5480 Sauter Type ER 25 Collet Chuck

A1 DA20548020 Axial Live Tooling DIN5480 Sauter Type Drilling & Milling Head ER 25 Collet Chuck



AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING, Lathe Chucks and Jaws. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for YOU!!!

Ajaxtoolsupply.com GUARANTEED LOWEST PRICE!

Ajax Industries Sales and Service 1 (800) 543-5998

Description

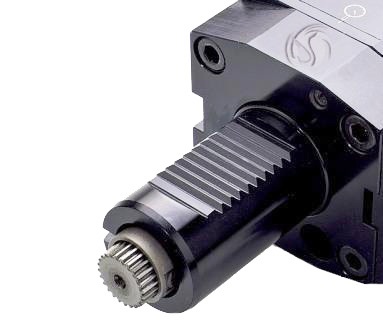

A1 Axial 5480 D/M Head w/ Collet Chk (D=30, ER25)

A1 Axial Drilling & Milling Head w/ Collet Chuck

Coupling to DIN5480 (Sauter Type)

Model# with "K": Internal Coolant (IC)



Main Features

To be used for collet DIN6499

External coolant supply

Collet is not included

For endmilling, drilling, reaming

For clockwise and counter-clockwise rotation



Specifications

Part Number :DA30548025

Ref# DA30-5480

D DIN69880 30

X Capacity 1-16/ER25

S 42

Max rpm 6000

i 1:1

A 101

B 70

C 33

E 66

F 66

P DIN5480 W16X0.8

Old# A130A1
