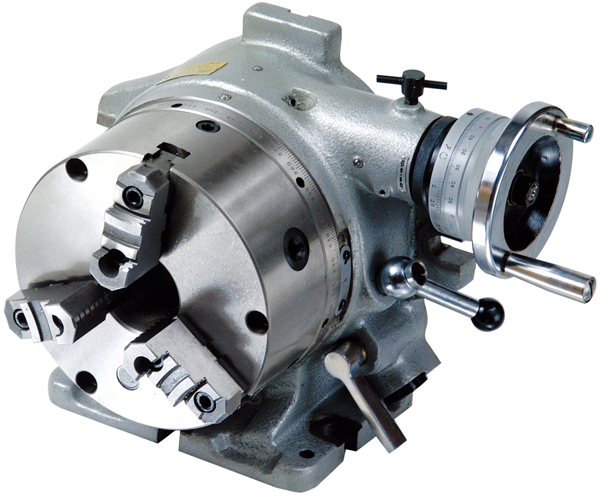

Product Description
Features
•Designed for milling, drilling, jig boring, and many other shop applications.
•Hardened and ground 24 position index plate (15°increments). •360°satin chrome graduated ring with 10 second adjustable vernier plate insures accurate readings.
•Each unit is equipped with 6 masking plates for fast and simple indexing of 2, 3, 4, 6, 8 and 12 divisions.
•Complete with 3-jaw chuck and faceplate.
Product Specifications
Max. Individual Spacing Error 25 seconds
Vernier Reading 10 seconds
Squareness (table base to chuck 90° 0.0008"
Base Parallelism (face to face) 0.0004"
Mounting Flange Concentricity 0.0008"
Chuck Concentricity 0.0005" .
