Product Description
6" Kurt style CNC Super-Lock Vise 3900-0172
Features
•Lock down type.
•Ideal for all types of milling, grinding, drilling and tapping application in multiple vise set-ups.
•Flatness of all sides to .001" guaranteed.
•Mounting in 3 modes: upright, left and right side.
•Both sides parallel to each other to .0005" per 4".
•Up to 3000 N clamping force.

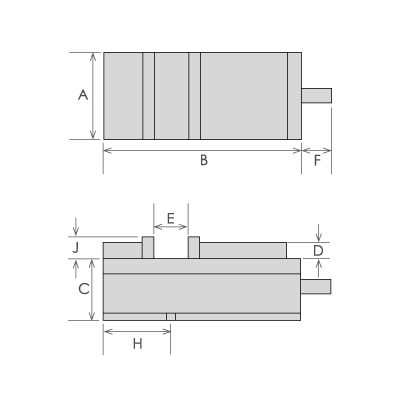

Product Specifications
Click on Print to see full size
Jaw Width A 6"
B 15.1"
C 3.19"
D 1.50"
E Jaw opening 5 1/2"
F 3.5"
H 5.62"
J 1.77"
Features
•Lock down type.
•Ideal for all types of milling, grinding, drilling and tapping application in multiple vise set-ups.
•Flatness of all sides to .001" guaranteed.
•Mounting in 3 modes: upright, left and right side.
•Both sides parallel to each other to .0005" per 4".
•Up to 3000 N clamping force.
Product Specifications
Click on Print to see full size
Jaw Width A 6"
B 15.1"
C 3.19"
D 1.50"
E Jaw opening 5 1/2"
F 3.5"
H 5.62"
J 1.77"
