4" Kurt style Twin Lock CNC Vise 3900-1722

4" Kurt style Twin Lock CNC  Vise 3900-1722
Item# 3900-1722
$294.00
Availability: In Stock

Product Description

4" Kurt style Twin Lock CNC  Vise 3900-1722
4" Kurt style Twin Lock CNC Vise 3900-1722







Features

•Precision clamping force per jaw set.

•Precision ground on all sides, can be mounted vertically or horizontally.

•Bed hardened to RC 45 or higher to resist wear.

•Reversible hardened jaw plates for standard or, stepped part holding.

•Reduces the tool changes per job by 50%.

•Uses the same machine space as conventional vises limited to half the part holding capacity.

•Top mounted center block can be removed easily for larger parts application.



Specs

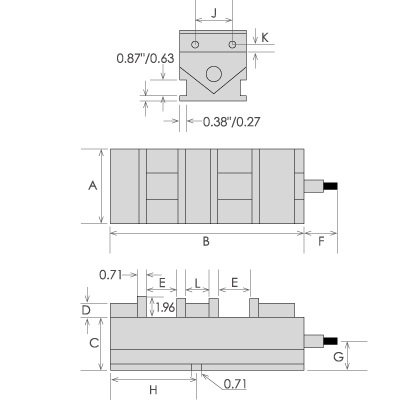

Click on thumbnail to see print

We also have a 6" available as well

4" Jaw Width

1.96" Jaw Height

A 3.94"

B Body Length of vise W/O handle 15.7"

C 2.40"

D 1.22"

E Jaw opening 3"

F Handle from Body of vise 2.5"

G 1.47"

H 7.7"

J Vise Jaw Center Distance 2.44"

K 0.75"

L 0.86"

Mounting Slot on Sides of vise .630"

Keyway at Bottom of vise .710"
