4" Kurt style CNC Super Lock Vise 3900 1719

4" Kurt style CNC Super-Lock Vise 3900-1719







Features

•Lock down type.

•Ideal for all types of milling, grinding, drilling and tapping application in multiple vise set-ups.

•Flatness of all sides to .001" guaranteed.

•Mounting in 3 modes: upright, left and right side.

•Both sides parallel to each other to .0005" per 4".

•Up to 3000 N clamping force.

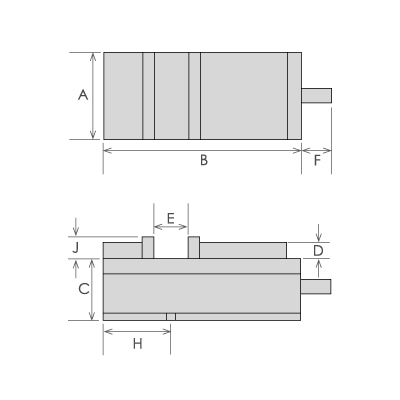

Product Specifications

Click on Print to see full size

Jaw Width A 4"

B 11.2"

C 2.48

D 1.13

E Jaw opening 4.2

F 1.63

H 4.25

J 1.46
