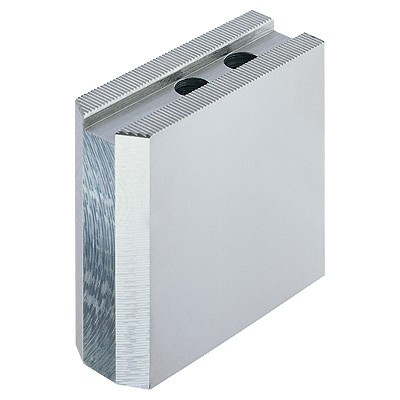

12" 1.5MM X 60 EXTRA HIGH STEEL Chuck Jaws for B12 Kitagawa 3900-5672

12" 1.5MM X 60  EXTRA HIGH STEEL Chuck Jaws for B12 Kitagawa 3900-5672
Item# 3900-5672
$165.00
Availability: In Stock

Product Description

12" 1.5MM X 60  EXTRA HIGH STEEL Chuck Jaws for B12 Kitagawa 3900-5672
12" 1.5MM X 60 EXTRA HIGH STEEL Chuck Jaws for B12 Kitagawa 3900-5672



FOR USE ON: Kitagawa, Samchully, Strong, MMK, SMW Autoblok, Howa & Hitachi-Seiki Chucks

STEEL

Features

•Extra-height jaws are suitable for longer workpiece, such as 4" length workpiece will need jaws with over 3" height which will increase the acuracy and stability of production process.

•Supplies maximum concentricity on finish turning operations.

•Price is for a set of 3 jaws.

•Jaws can be hardened.

•Can be bored or turned to fit workpiece.



Product Specifications

Chuck Size 12"

CRITICAL DIMENSIONS - Groove Width D 0.710 (18mm)

CRITICAL DIMENSIONS - Screw Size E 0.55 (M14)

CRITICAL DIMENSIONS - Hole Space F 1.181 (30mm)

CRITICAL DIMENSIONS - Hole to Front H 2.362

Jaw Width C 1.89

Jaw Length A 5.08

Jaw Height B 3.94 (100mm)

Weight 27.7
