Product Description

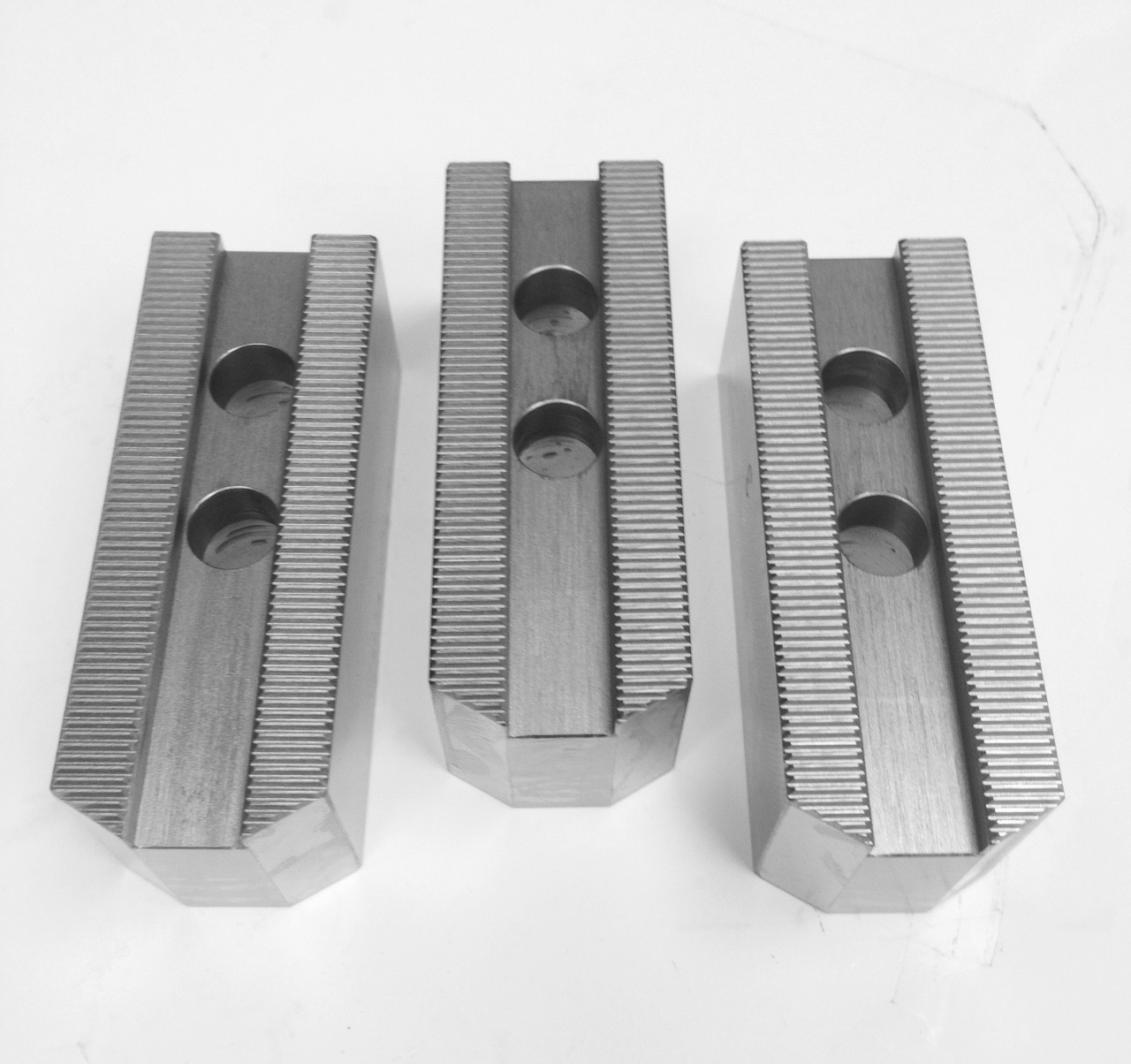

10" 1.5MM X 60 Degree Serrated STEEL Soft Chuck Jaws for B210 Kitagawa Strong SET 3900-4690
FOR USE ON: Kitagawa, Samchully, Strong, MMK, SMW Autoblok, Howa & Hitachi-Seiki Chucks
STEEL
Features
•Supplies maximum concentricity on finish turning operations
•Can be bored or turned to fit workpiece
•Jaws can be hardened
•Set includes 3 pcs
Product Specifications
Chuck Size 10"
CRITICAL DIMENSIONS - Groove Width D 0.630 (16mm)
CRITICAL DIMENSIONS - Screw Size E 1/2 (M12)
CRITICAL DIMENSIONS - Hole Space F 1.181 (30mm)
CRITICAL DIMENSIONS - Hole to Front H 1.969
Width Inch C 1.57
Length Inch A 4.33
Height Inch B 1.65
Weight 9 Lbs
FOR USE ON: Kitagawa, Samchully, Strong, MMK, SMW Autoblok, Howa & Hitachi-Seiki Chucks
STEEL
Features
•Supplies maximum concentricity on finish turning operations
•Can be bored or turned to fit workpiece
•Jaws can be hardened
•Set includes 3 pcs
Product Specifications
Chuck Size 10"
CRITICAL DIMENSIONS - Groove Width D 0.630 (16mm)
CRITICAL DIMENSIONS - Screw Size E 1/2 (M12)
CRITICAL DIMENSIONS - Hole Space F 1.181 (30mm)
CRITICAL DIMENSIONS - Hole to Front H 1.969
Width Inch C 1.57
Length Inch A 4.33
Height Inch B 1.65
Weight 9 Lbs
